Product Description

Flat rack container transporting | Flat rack international shipping | flat rack shipping | FR transport

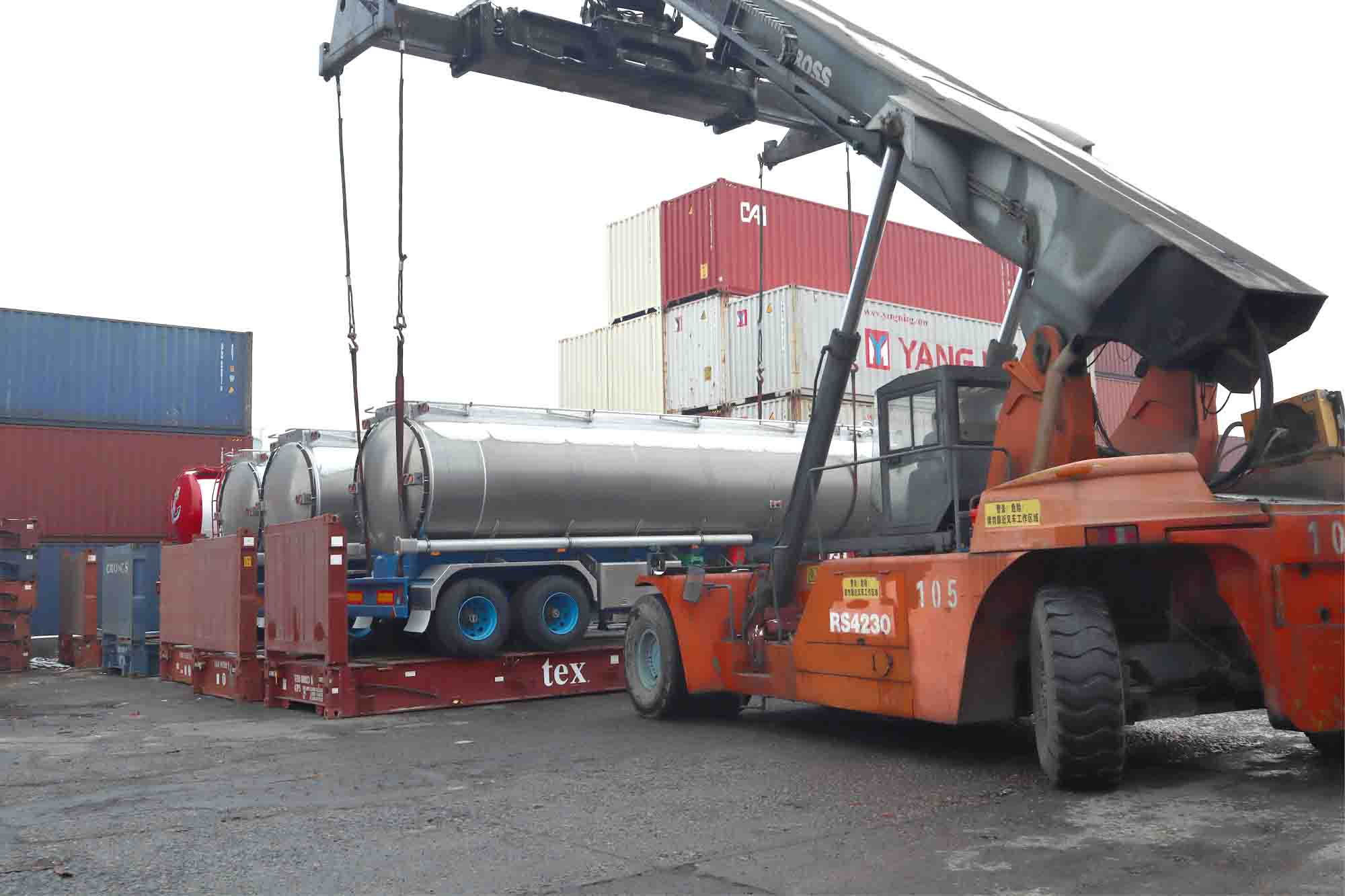

      The flat rack is a kind of container, belonging to the special container transport. FALT RACK is called FR in short.  It has two different size, one of which is 20 feet flat rack with another of  40 feet flat rack. The flat rack doesn't have the top covert and the side walls, and the front wall and the end wall are able to remove. The bottom plate and the four corner column containers are extremely flexible due to their special construction. They can be used to transport the machinery, equipment, vehicles and heavy parts. It's a kind of container transport solutions which is used for transporting the cargos that the container is not able to transport.  It usually has fixed liners and fixed ports. It's a   stable sea transport solutions. For some oversized cargo is the advantage of the flat rack, the transportation advantage is much more popular than the other modes of transportation.

FLAT RACK SHIPPING  (7).jpg

                                                                                                        Flat Rack details




           20 ft Flat Rack

outer size6058mm(L)X2438mm(W)X2591mm(H)
inner length5700mm
inner width2400mm
inner height2200mm
payload
26 MT
self-weight1.7MT



           40 ft Flat Rack

outer size12192mm(L)X2438mm(W)X2591mm(H)
inner length11800
inner width2400
inner height2200
payload
28 MT
self-weight3  MT

Characteristics:


         1. Belongs to the container, so the fixed liner is anchored to the fixed loading and unloading port, and the shipping period is relatively stable.

         2. Because of the special construction of the flat rack, the oversized cargo is generally loaded on the deck position of the ship, so the packing and reinforcement must be strictly controlled, otherwise, if the cargo binding is loose that will cause the damage of the cargos.

         3. The application of the Flat rack is extremely flexible, not only can the signal flat rack be used alone, but also can be used after the charge of the cargos on the ships. This solution is widely used on the heavy cargos and the oversize cargos international transportation.

         4. The flat rack container is convenient for loading and unloading, suitable for loading large cargos with over length, over width, over height and various shapes.
